This guide is based on YueHouDZ’s real project experience in customizing silicone protective cases for GPS navigation devices.
1. Why Customize a Silicone Protective Case for a GPS Device?
During outdoor hiking or climbing, many users initially purchase universal GPS silicone cases. However, these generic cases often fail to meet real outdoor needs: they are not precisely sized, may fit loosely, may not fully wrap the device, and typically lack reinforced impact bumpers on the corners. This can lead to damage when the device is dropped or scraped against rocks.
Some universal silicone cases have a thickness greater than 8 mm, making them difficult to store in backpack side pockets. Waterproofing is usually poorly optimized—drainage around openings is simplistic, allowing rainwater to seep into the device.
This guide helps you understand the real functions of a GPS silicone case, identifies must-know information before customization, and explains structures, materials, workflows, and pitfalls—turning vague ideas into a complete manufacturing plan.
2. Understanding GPS Silicone Protective Cases: What They Are & What Problems They Solve

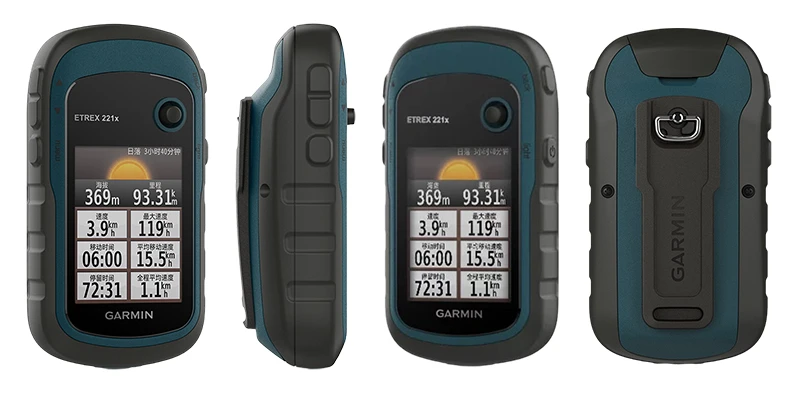

2.1 What Is a Silicone Protective Case for GPS Devices?
It is an outdoor protective accessory designed for GPS units. Using silicone’s elasticity, cushioning, and structural coverage, it protects the device from impact, scratches, and rain exposure—essentially acting as a “protective shield” for outdoor environments.
2.2 Common Structural Types
- Full-cover structure
- Semi-cover structure
2.3 When Should You Consider Customization?
High-intensity outdoor activities (expeditions, high-altitude climbing): require full impact protection and water resistance when dropped on rocks or exposed to rainfall.
Lower-intensity scenarios (urban cycling): require basic protection while maintaining heat dissipation and operability.
3. Five Key Information Points You Must Prepare Before Customizing
3.1 Clarify Requirements Before Asking for a Quotation
The clearer the information you provide, the more accurate the Factory’s quotation and design proposal will be.
3.2 The Six Information Points Factories Care About Most
- Usage environment: outdoor hiking, rain exposure, friction against rocks, UV intensity.
- Key dimensions: device length × width × height (including corner radius), button/port protrusion height and coordinates, photos with measurement baselines.
- Material hardness: silicone Shore A 50–60, suitable for −15°C to 45°C, corner bumpers 2.5–3.5 mm.
- Quantity planning: 1–3 samples; first batch 500–1000 pcs; small restock batches optional.
- Timeline: samples expected within 2 weeks; final goods needed 1 month before hiking season.
- Certifications: RoHS 2.0 compliance, no odor, safe under high temperature.
3.3 A Table You Can Send Directly to the Factory
| Information Type | Description |
|---|---|
| Environment & installation | Full-cover outdoor GPS usage; anti-drop and rain-resistant; fits in backpack side pocket. |
| Key dimensions & drawings | Device L × W × H (with radius), button/port heights; multi-angle photos with measurement baselines. |
| Hardness & performance | Shore A 50–60; wall thickness 0.8–1.2 mm; corner bumpers 2.5–3.5 mm; weight ≤ 35 g. |
| Quantity & timeline | three samples (within 2 weeks); first batch 500 pcs (delivered before hiking season). |
4. Four Core Dimensions in GPS Silicone Protective Case Customization
4.1 Structural / Dimensional Options
| Structure Type | Description | Suitable Scenarios | Cost Trend |
|---|---|---|---|
| Full-cover precision molding | Custom mold based on accurate 3D device measurements; 0.2–0.3 mm functional clearance for keys/ports. | Heavy rain, rainforest, full protection required. | Medium |
4.2 Material Options
| Material | Characteristics | Typical Applications | Cost |
|---|---|---|---|
| Shore A 55–65 silicone | Below 50 = too soft; above 70 = reduced impact absorption. | General outdoor use | Low |
| MVQ silicone (10–15% methyl vinyl) | Excellent weather resistance (−40°C to 120°C) | Extreme-weather hiking, high-altitude | Medium |
| Fumed silica silicone | 30% higher tear strength; excellent abrasion resistance | High-friction areas (backpack pockets) | Mid-high |
| Anti-yellowing transparent silicone | Maintains color stability under sun exposure | Appearance-focused designs | Mid-high |
4.3 Performance Options
- Rainproof slope design (inner high, outer low)
- Anti-drop air-cushion corner bumpers
- Lightweight thin-wall structure (0.8–1.2 mm)
4.4 Appearance & Additional Options
- PU coating or soft-touch surface for anti-dust performance
- Branding options: silk screen, UV print, water-transfer graphics
- Anti-slip textures: diamond mesh + micro-dotted etching
5. Engineering Design Essentials for GPS Silicone Protective Cases
Engineering structure design directly determines the protective performance, manufacturability, and long-term durability of a silicone protective case. The following parameters must be clearly defined before mold production begins.
5.1 Wall Thickness & Corner Radius Design
| Parameter | Recommended Value | Description |
|---|---|---|
| Wall thickness | 1.2–2.5 mm | 1.5–2.0 mm is optimal for hiking use; it balances protection and portability. |
| Corner radius (R) | ≥ 1/3 of wall thickness (min. 0.5 mm) | Larger radii reduce stress concentration and avoid cracks. |
| Wall thickness difference | ≤ 0.5 mm | Avoids internal stress and shrinkage; transitions must be gradual. |
| Internal reinforcement ribs | 0.3–0.5 mm | Strengthens structure without adding excessive thickness. |
5.2 Corner Bumper (Anti-Drop) Design
| Parameter | Recommended Value | Description |
|---|---|---|
| Bumper height | 1/5–1/3 of device thickness | Ensures effective impact absorption without tearing. |
| Cross-sectional shape | Semi-elliptical | Long axis aligned with impact direction for better force distribution. |
| Bumper base radius | 0.8–1.2 mm | Improves tear resistance at stress points. |
| Spacing distribution | ≤ 1/4 of device diagonal | Follow the rule: corner-first + uniform side distribution. |
5.3 Waterproof Opening & Seal Structure
| Parameter | Recommended Value | Description |
|---|---|---|
| Sealing lip compression | 15%–25% (approx. 0.3–0.5 mm) | Ensures effective waterproofing with 60A silicone. |
| Opening size | 0.5–1.0 mm smaller than device | Forms an interference fit for water resistance. |
| Water-shedding brim | 1.5–2.0 mm height 15°–20° slope | Guides rainwater outward to prevent pooling. |
| Button opening tolerance | +0.3–0.5 mm | Provides comfortable pressing while avoiding misalignment. |
5.4 Draft Angle Design
| Surface | Draft Angle | Description |
|---|---|---|
| Outer surface | 1°–3° | Improves demolding during vulcanization. |
| Inner surface | 2°–4° | Silicone allows smaller draft angles than hard plastics, but proper draft is still required. |
6. Full Customization Workflow: From Requirements to Final Delivery
The full workflow includes requirement communication, design confirmation, mold creation, sample testing, mass production, and inspection before shipment.
6.1 Information the Factory Must Confirm With You
- Device information: Model, 3D dimensions (±0.1 mm), photos with measurement references.
- Usage environment: Hiking, rain exposure, impact conditions, temperatures.
- Design requirements: Hardness, bumper height, waterproof lip structures, wall thickness.
- Mold specifications: Mold material, whether sliders are needed, mold cycle (7–15 days), expected accuracy.
- Sample testing:
- 1 m drop test on concrete × 3
- IPX4 rain spray test × 5 minutes
- Dimensional tolerance ≤ ±0.2 mm
- Production timeline: 15–25 days with defined milestones.
- Quality inspection: Appearance, dimensional accuracy, and 5% random waterproof/drop testing.
6.2 Sample Testing Methods
- Fit test: check insertion force (5–10 N) and wobble (< 0.5 mm)
- Environmental test: −10°C to 45°C cycling
- Friction test: 600D nylon fabric, 5 N force, 500 cycles
7. MOQ, Lead Time & Cost Structure
7.1 MOQ Requirements
Using existing public molds: MOQ 300–500 pcs (no mold fee).
Full custom mold: MOQ 1000–3000 pcs, mold fee typically $430–$1140 depending on size and complexity.
7.2 Lead Time
- Standard schedule:
Mold: 7–15 days
Samples: 3–5 days
Production: 15–25 days
Shipping: 3–7 days - Complex structures/peak season: Mold may take 12–15 days; total timeline may exceed 50 days.
- Expedited service:
Mold: 5–8 days (higher cost)
Production: 10–15 days (10%–20% added cost)
7.3 Cost Structure
- Mold cost proportion: 15%–40% of the project
- Material cost: 25%–35% (fumed silicone is 20%–30% more expensive than standard silicone)
- Labor & process cost: 20%–30%
Small batch production (< 500 pcs):
Unit cost will be higher because the mold cost is distributed across fewer units.
Unit price may increase 30%–60% compared to orders of 3000+ pcs.
Cost factors that may increase pricing:
- Higher hardness silicone: +10%–15%
- Complex multi-cushion corner bumpers: +10%–20%
8. Eight Common Pitfalls in GPS Silicone Protective Case Customization & How to Avoid Them
Silicone case customization involves multiple steps, including design, material selection, mold building, testing, and production. Any oversight may cause waterproof failures, weak drop protection, delays, or unexpected costs. Understanding these pitfalls helps avoid unnecessary losses.
Pitfall 1: Missing Key Specifications During Requirement Stage
Risk: Sample bumper height only 3 mm when 5 mm was required; hardness too soft (30A). A drop from 0.8 m results in scratches on the GPS housing.
Solution: Provide full specification documents, including hardness (50A–60A), bumper height (3–5 mm), CAD + annotated drawings, and have the supplier sign the requirement sheet.
Pitfall 2: Poor Weather-Resistance of Silicone
Risk: Low-grade silicone cracks (0.3–0.5 mm) after prolonged sun exposure; waterproofing weakens and fails IPX4.
Solution: Specify MVQ or fumed silicone. Request temperature cycles and UV resistance test reports. Conduct material batch sampling before production.
Pitfall 3: Incomplete Testing Scenarios
Risk: The product passes static water tests but fails after real outdoor use due to friction causing seam gaps.
Solution: Add dynamic friction tests:
600D nylon fabric, 5 N force, 500 cycles on high-friction areas, followed by IPX4 spray tests. Acceptable water ingress < 0.5 mL/min.
Pitfall 4: Inaccurate Mold Precision
Risk: Mold tolerance ±0.2 mm causes inner dimension mismatch. Scrap rate reaches 30% in the first batch.
Solution: Require CNC accuracy of ±0.05 mm. Verify fit using 1:1 3D-printed prototypes (insertion force 5–10 N, wobble < 0.5 mm).
Pitfall 5: Material Substitution During Mass Production
Risk: Supplier uses recycled silicone (65A, 5 MPa tensile) instead of new silicone (50A, 8 MPa). Shock absorption decreases significantly.
Solution: Sign a material-consistency agreement. Require batch silicone inspection reports. Randomly test hardness (±3A tolerance) and tensile strength (≥ 7 MPa).
Pitfall 6: Incorrect Waterproof Lip & Opening Design
Risk: Opening uses a plain 1 mm wall, no sealing lip. Water ingress reaches 5 mL during the IPX4 spray test (10 minutes).
Solution: Add sealing lip: 3 mm width, 2 mm height, with a slight interference fit (~0.5 mm). Require water ingress ≤ 0.5 mL at IPX4 test.
Pitfall 7: Vague Acceptance Criteria
Risk: Factory believes “0.5 m drop on wooden floor” is acceptable; customer requires “1 m drop on concrete.” Leads to disputes.
Solution: Clearly state acceptance criteria:
1 m drop test × 3 on concrete; device must remain functional with no deformations. Provide and store test videos.
Pitfall 8: Cutting Corners in Vulcanization Process
Risk: Supplier skips second vulcanization. The case becomes sticky and gathers dust; the openings tear after 1 month.
Solution: Require full vulcanization:
160°C × 15 min (primary) + 200°C × 4 hours (secondary).
Randomly test tensile strength (≥ 7 MPa) and dust adhesion (≤ 5%).
9. Documents & Information You Should Prepare Before Communicating With the Factory
9.1 Technical Data: Dimensions & Structure
- Full 3D dimension sheet (±0.1 mm accuracy)
- STL / STEP 3D model files
- Button positions, opening sizes, bumper sizes (3–5 mm), R-values
- Annotated photos with measurement baselines
9.2 Application & Environmental Requirements
- Usage: hiking, forest, rain exposure, -10°C to 40°C, humidity 85%
- Protection: IPX4 waterproof, 1.5 m drop resistance
- Durability: ≥ 500 insertion cycles without deformation
- Common pain points from competitors: corner wear, loose fit, weak waterproofing
9.3 Business Requirements
- MOQ expectations & replenishment cycle
- Target unit price (example: $2.10–$2.80 per piece)
- NDA requirements; penalties for design leakage (typically double mold fee)
9.4 Supplier Information Checklist
| Category | Description | Example |
|---|---|---|
| Drawings & files | 3D model + dimension sheet | STL/STEP + Excel |
| Critical dimensions | Device + bumper structure | 120.5 × 65.2 × 18.3 mm; bumper 4 mm |
| Environment | Temperature / humidity / friction | Hiking; 1.5 m drop |
| Testing | Waterproof / safety standards | IPX4, RoHS 2.0 |
| Order plan | MOQ & replenishment | 500 pcs; 30-day cycle |
| Budget | Target price range | $2.10–$2.80 |
| Packing | Packaging & shipping | OPP bag; carton ≤ 15 kg |
| Confidentiality | NDA requirements | No design disclosure |
10. GPS Silicone Protective Case Customization FAQ
Q1: Can I customize a silicone case without providing design drawings?
A: Yes. Most factories can create drawings for you if you provide accurate device dimensions or the physical device for 3D scanning.
Q2: Can the factory support small-batch production?
A: Yes. Most silicone mold suppliers support MOQs of 500–1000 pcs, and some offer shared mold solutions.
Q3: How do I confirm a factory can handle outdoor-grade waterproofing and drop resistance?
A: Check ISO 9001 quality management, RoHS compliance, and verify past outdoor product cases. Ensure proper vulcanization equipment is in place.
Q4: What are the key inspection points I should focus on?
- Hardness: Shore A 50–60
- Waterproofing: IPX4
- Opening dimensions: tolerance ±0.3 mm
- Tensile strength: ≥ 6 MPa
- Tear strength: ≥ 25 kN/m
Q5: What if waterproofing fails or the case tears shortly after use?
A: Report within 7 days. The supplier should respond within three working days. Confirmed quality issues must be reworked or replaced at a 1:1.2 ratio.
Q6: Who owns the mold? Are modification fees required later?
A: After the mold fee is paid in full, the mold belongs to the customer.
Minor changes typically cost $70–$215.
Major structural changes require a new mold.
